Parametric Island Leg Assembly that makes drawing overhang supports and legs easy for Mozaik! Easily turn on/off rear legs, cycle thru 15 pre-installed Sketchup models in Mozaik (can add your own), use half posts or full posts, or curve the front apron if needed.

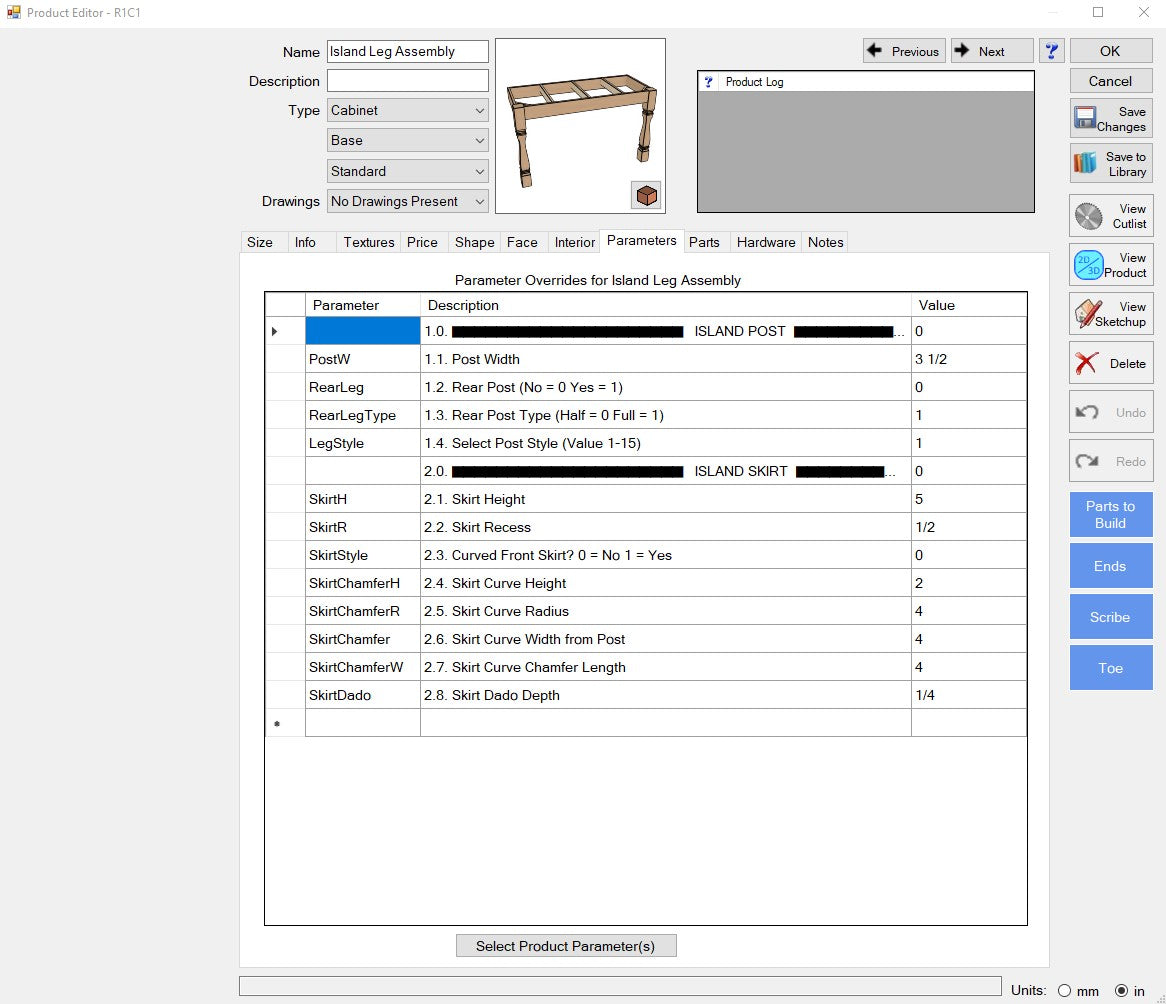

Included Parameters
• Post Size
• Rear Post off/on (and/or half or full)

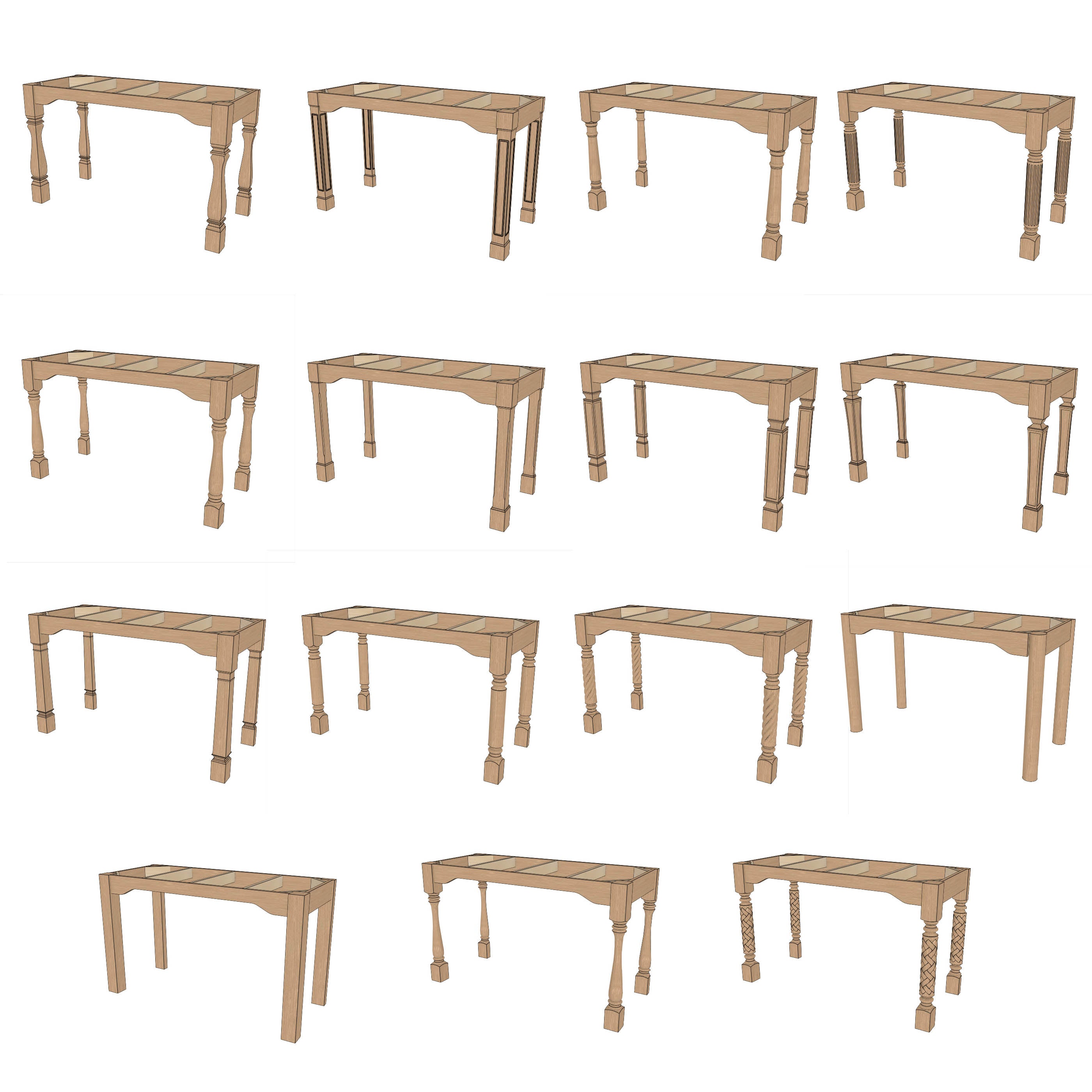

• Cycle between 15 leg styles pre-loaded in Mozaik
• Skirt Profile (Height, Curve/Chamfer settings)
Required Tooling
• 3/8 Compression
• 90 or 91 degree V-bit (Greater than 1.5" Diameter)
