Range Hood | Arched MDF Panel

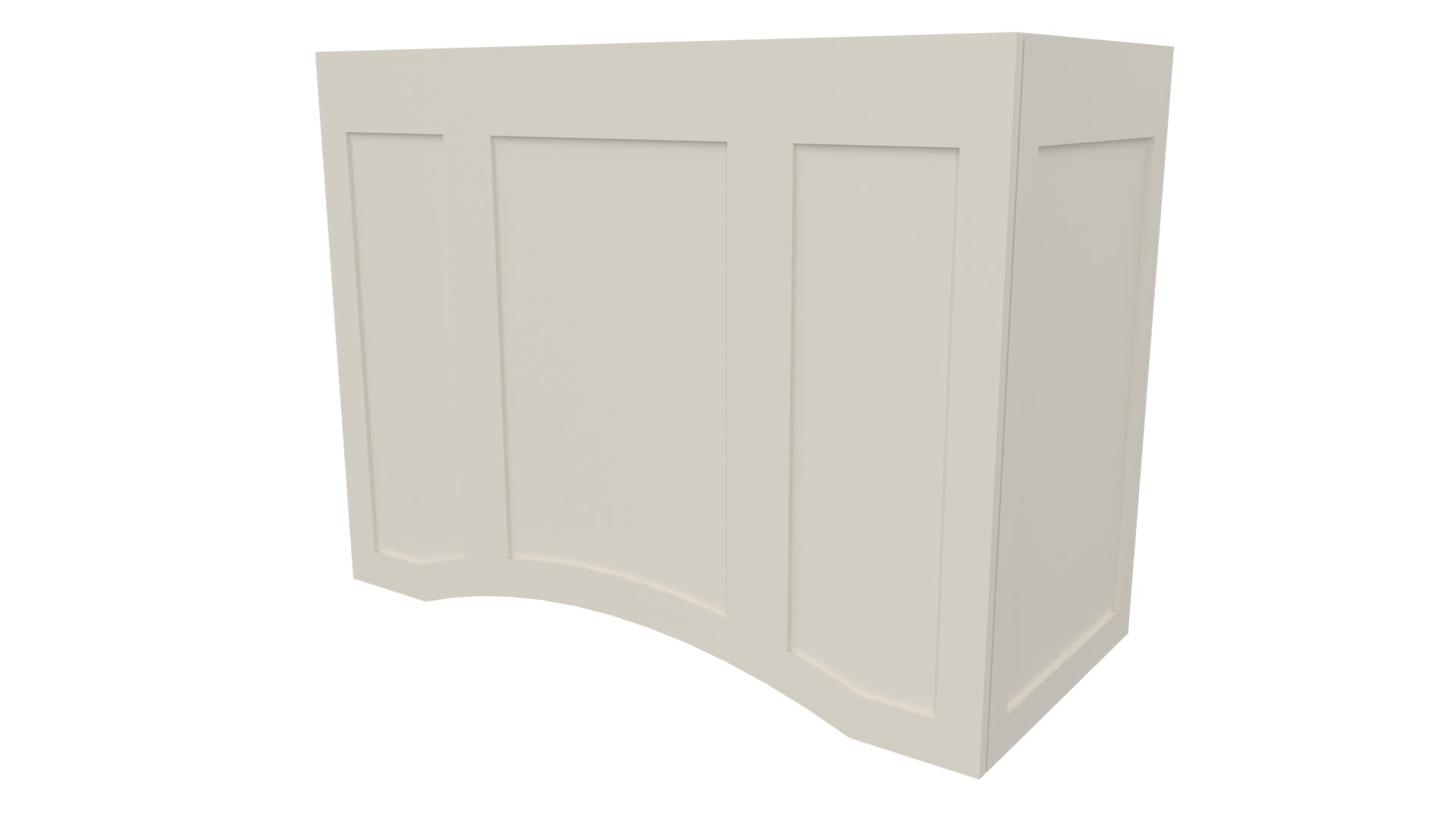

A furniture-grade face with real presence: a graceful arched crown sits above configurable stile-and-rail pocket panels, for a look that reads custom millwork, not stock hood. Traditional detailing, modern build. Includes all the necessary parameters for stylizing your pocket-panel doors with 2 to 5 sections and fully adjustable arch, rail, and stile dimensions. All the math is done, no additional CAM software needed.

This parametric hood file makes styling effortless: adjust 35+ user parameters—overall size, shape, strapping, and trim and watch the design update instantly to match your customer’s look. No SketchUp required; set your dimensions, tweak the options, and let the formulas drive every part.

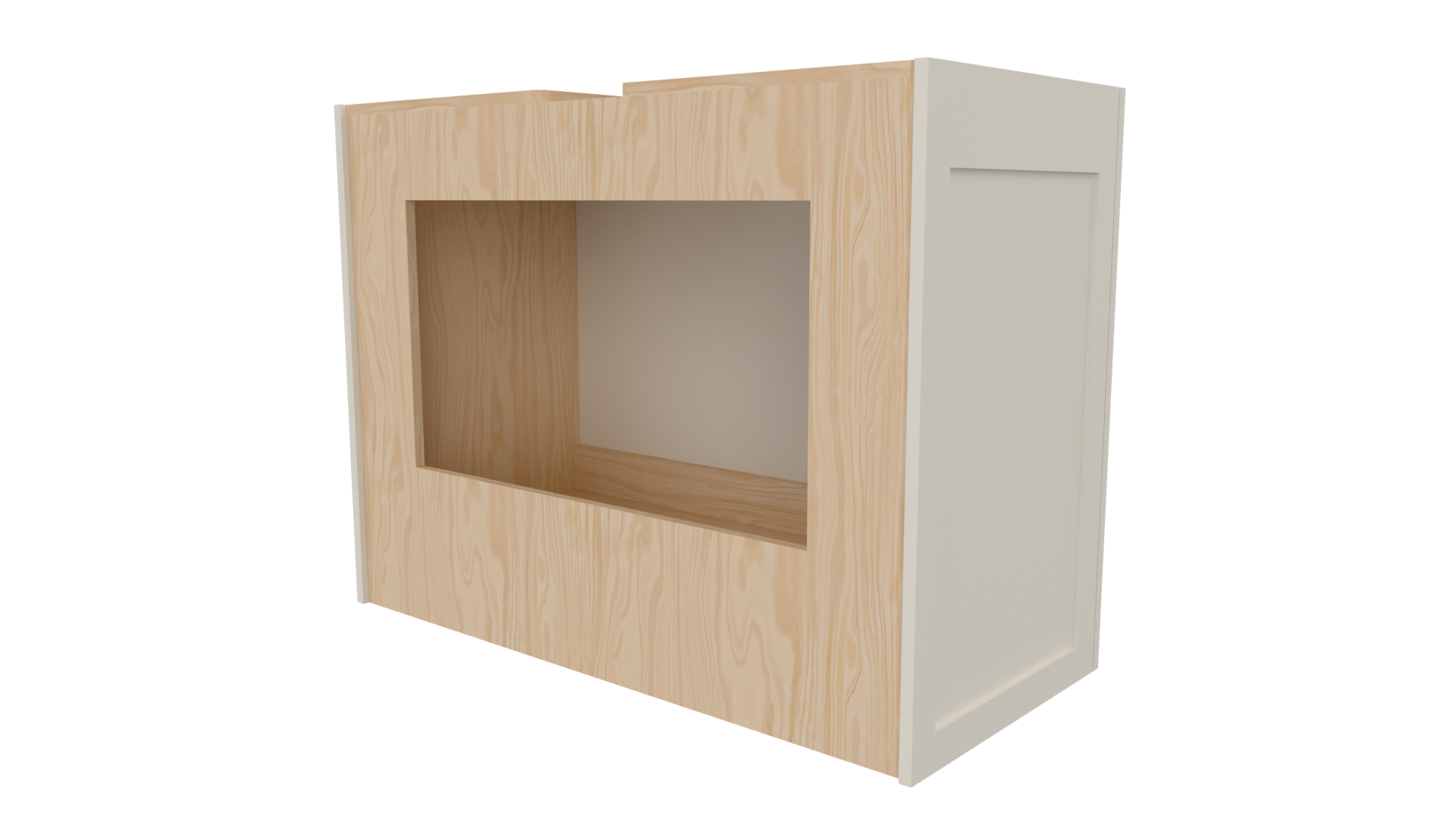

Go straight from screen to machine. Setup is fast, assembly is simple, and parts come off the CNC ready to go with dados and pilot-hole locations already in place. Plus, every hood is either a two-piece design or includes removable/hinged panels to support blower-motor access (confirm local code requirements).

Need help setting up the file? Select Yes below for a 30-minute Zoom session.
