Range Hood | Compound Ballast

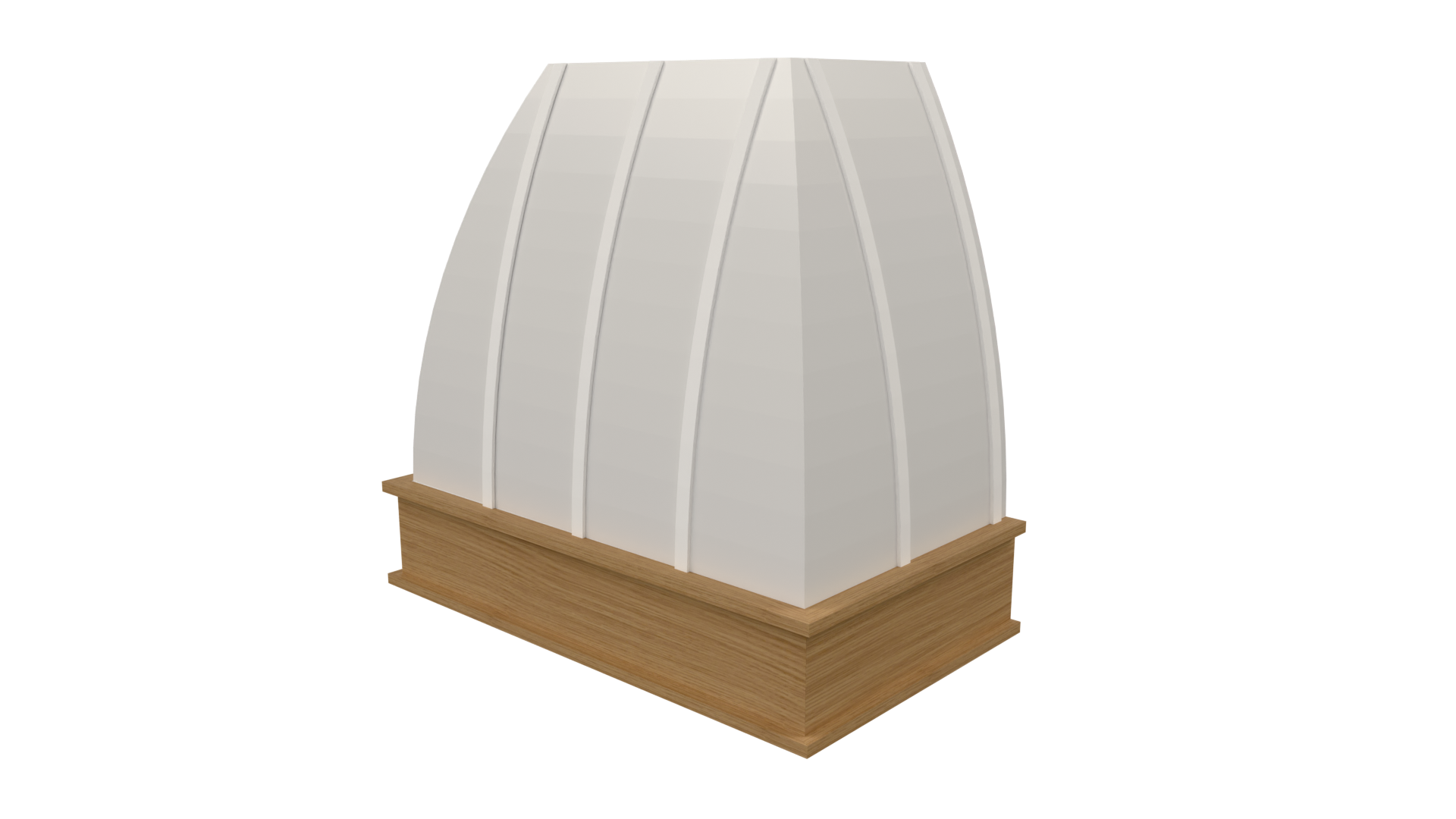

A solid, anchored profile with subtle tapers and eased curve. Clean geometry, softened where it counts so it reads substantial without feeling bulky. Versatile enough for modern or transitional kitchens and easy to make the focal point of the range wall.
This parametric hood file makes styling effortless: adjust 35+ user parameters—overall size, shape, strapping, and trim and watch the design update instantly to match your customer’s look. No SketchUp required; set your dimensions, tweak the options, and let the formulas drive every part.

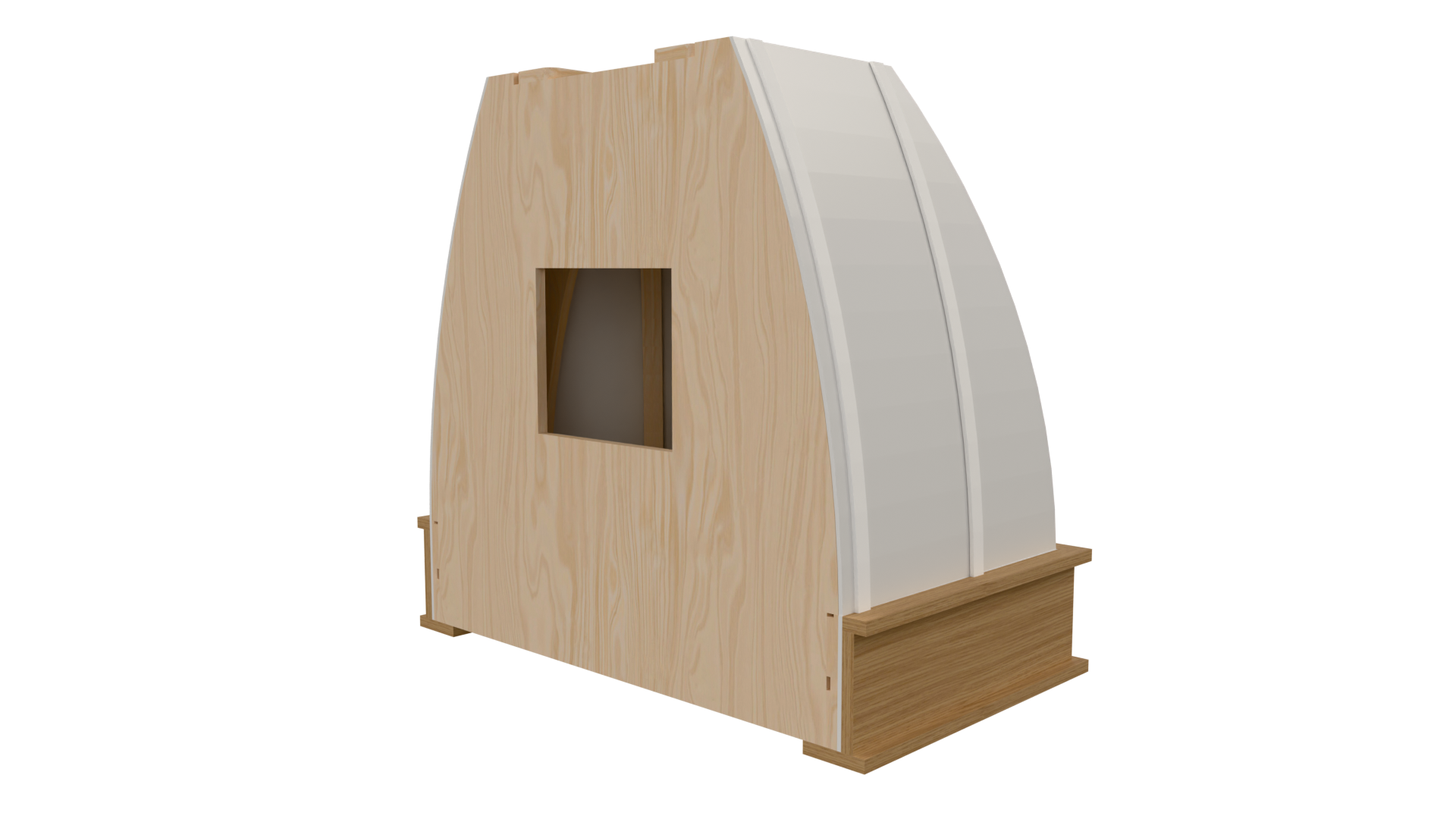

Go straight from screen to machine. Setup is fast, assembly is simple, and parts come off the CNC ready to go with dados and pilot-hole locations already in place. Plus, every hood is either a two-piece design or includes removable/hinged panels to support blower-motor access (confirm local code requirements).
Need help setting up the file? Select Yes below for a 30-minute Zoom session.
Included Parameters
Size
• Width of the Hood
• Height of the Hood
• Depth of the Hood
Shape
• Height of bottom apron
• Inset taper from front
• Height of top apron
Construction
• Width of the cleat at the top
• Inset for the cleat at the top
• Width of cleat ribs
• Width of cutout material to remain
• Recess of bottom panel
• Depth of all dados in hood
• Pilot hole size (3mm or 5mm)
Blower / Vent
• Blower cutout tool diameter
• Blower cutout width
• Blower cutout depth
• Blower cutout inset from front
• Vent pipe diameter
• Move vent pipe cutout to the left
• Move vent pipe cutout to the right
Trim
• Add trim to bottom of hood? (Yes or No)
• Height of hood trim
• Width of wood trim on bottom-sides
• Width of wood trim on bottom-front
• Shorten trim depth
• Extend trim out from apron edge
• Add curve to bottom of apron trim? (Yes or No)
• Curve width
• Curve height (middle of curve)
• Curve height (start of curve)
• Add trim to interior bottom opening? (yes/no)
Strapping
• Enable hood strapping? (Yes or No)
• Vertical strap quantity (0, 2, 3 or 5)
• Strapping on hood apron? (Yes or No)
Skins
• Bottom skin? (Yes or No)
• Extra depth for Wall Scribe
• Depth of Kerf? (% thickness of skin material)
• Width of Kerf
• Spacing Between Kerfs
Required Tooling
• 3/8 Compression
• 5mm Drill
• 90 or 91 degree V-bit (Greater than 1.5" Diameter)
• 1/4 or 1/8 Downshear (Skin kerfs)
