Range Hood | Taper

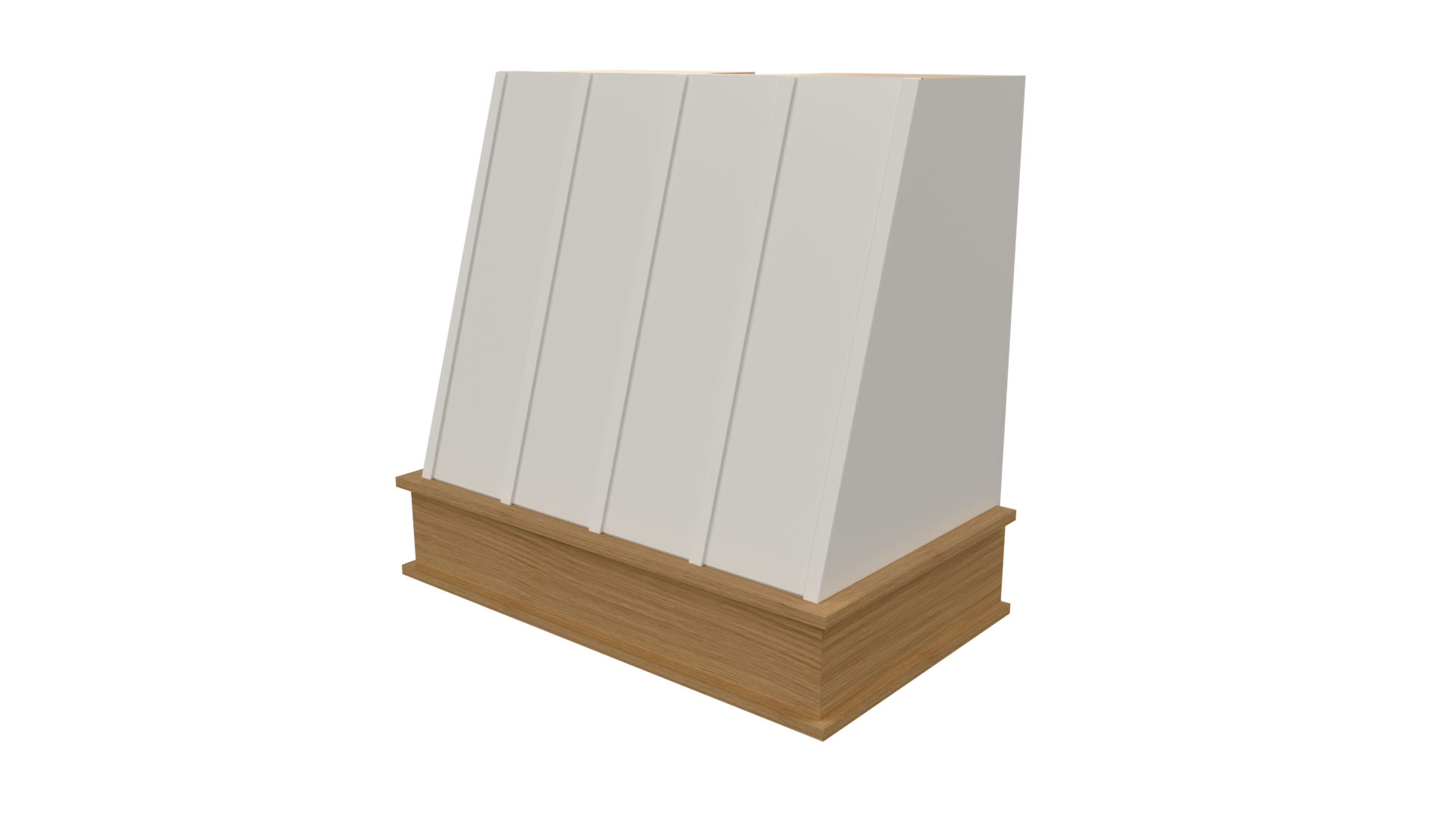

Crisp geometry with a purposeful pitch. This silhouette delivers a modern, designer look that complements Shaker to ultra-contemporary spaces with effortless ease.
This parametric hood file makes styling effortless: adjust 35+ user parameters—overall size, shape, strapping, and trim and watch the design update instantly to match your customer’s look. No SketchUp required; set your dimensions, tweak the options, and let the formulas drive every part.

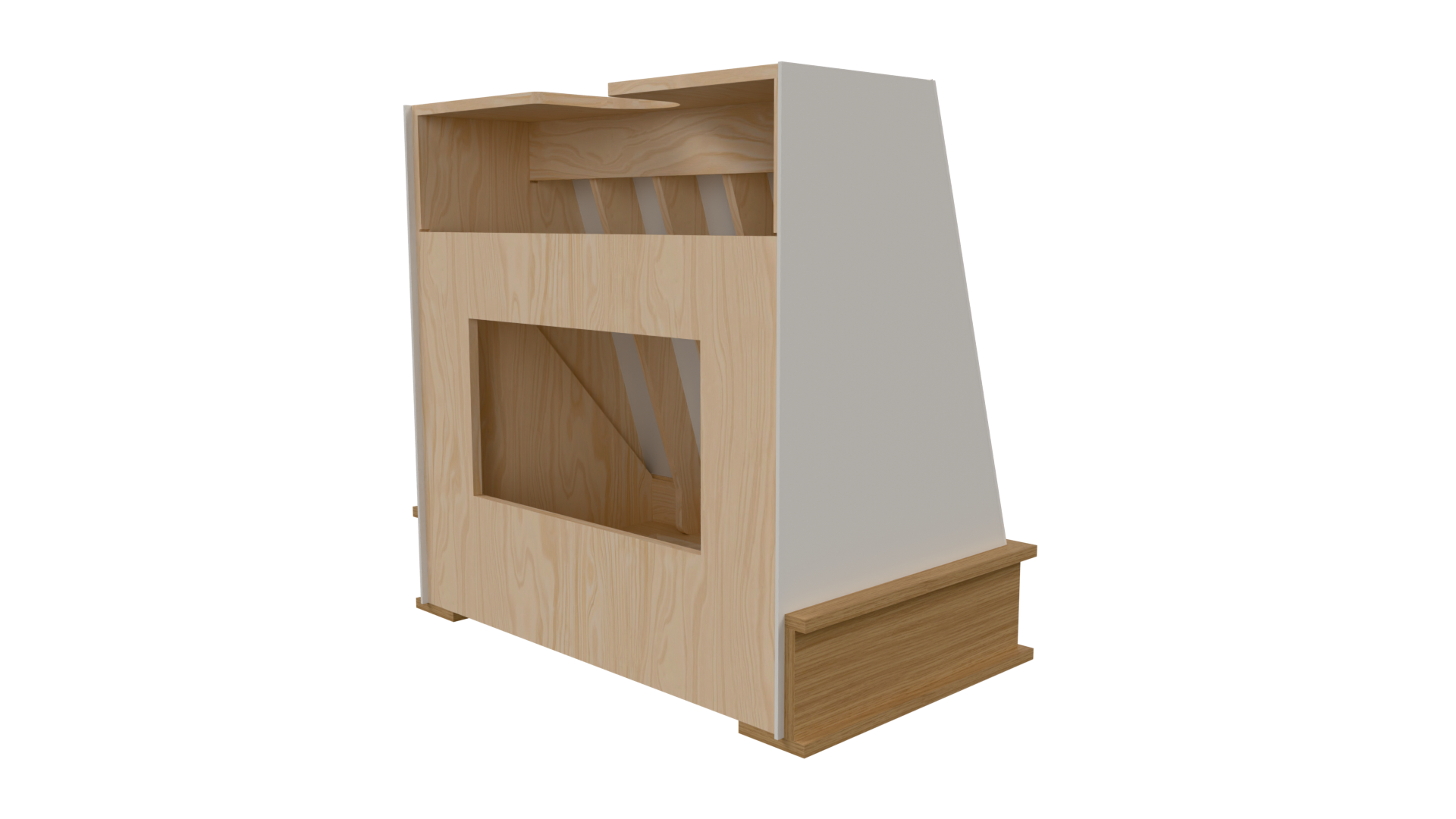

Go straight from screen to machine. Setup is fast, assembly is simple, and parts come off the CNC ready to go with dados and pilot-hole locations already in place. Plus, every hood is either a two-piece design or includes removable/hinged panels to support blower-motor access (confirm local code requirements).
Need help setting up the file? Select Yes below for a 30-minute Zoom session.
Included Parameters
Size
• Width of the Hood
• Height of the Hood
• Depth of the Hood
Shape
• Height of bottom apron
• Inset taper from front
Construction
• Width of cutout material to remain
• Recess of bottom panel
• Depth of all dados in hood
• Pilot hole size (3mm or 5mm)
Blower / Vent
• Blower cutout tool diameter
• Blower cutout width
• Blower cutout depth
• Blower cutout inset from front
• Vent pipe diameter
• Move vent pipe cutout to the left
• Move vent pipe cutout to the right
Trim
• Add trim to bottom of hood? (Yes or No)
• Height of hood trim
• Width of wood trim on bottom-sides
• Width of wood trim on bottom-front
• Shorten trim depth
• Extend trim out from apron edge
• Add curve to bottom of apron trim? (Yes or No)
• Curve width
• Curve height (middle of curve)
• Curve height (start of curve)
• Add trim to interior bottom opening? (yes/no)
Strapping
• Enable hood strapping? (Yes or No)
• Strapping on hood apron? (Yes or No)
Skins
• Bottom skin? (Yes or No)
• Extra depth for Wall Scribe
Required Tooling
• 3/8 Compression
• 5mm Drill
• 90 or 91 degree V-Bit for Mitered Skins
Videos
Coming Soon...
You may also like:
Instant Delivery
Access your files immediately after checkout.
CNC-Ready Accuracy
Optimized for precision cutting every time.
Easy Integration
Works seamlessly with Mozaik Software.
1-on-1 Support
Optional Online Expert Setup via Zoom.
