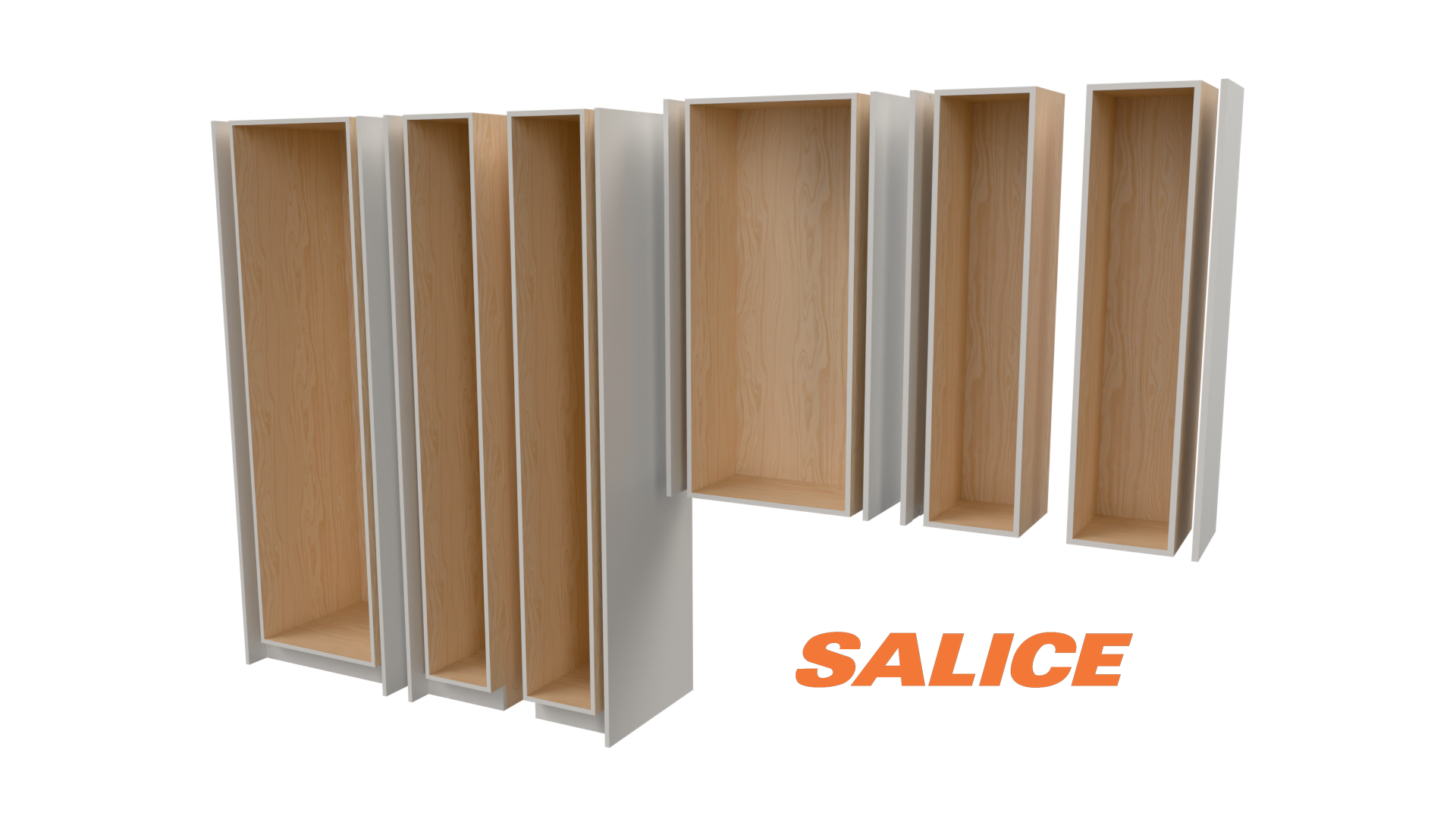

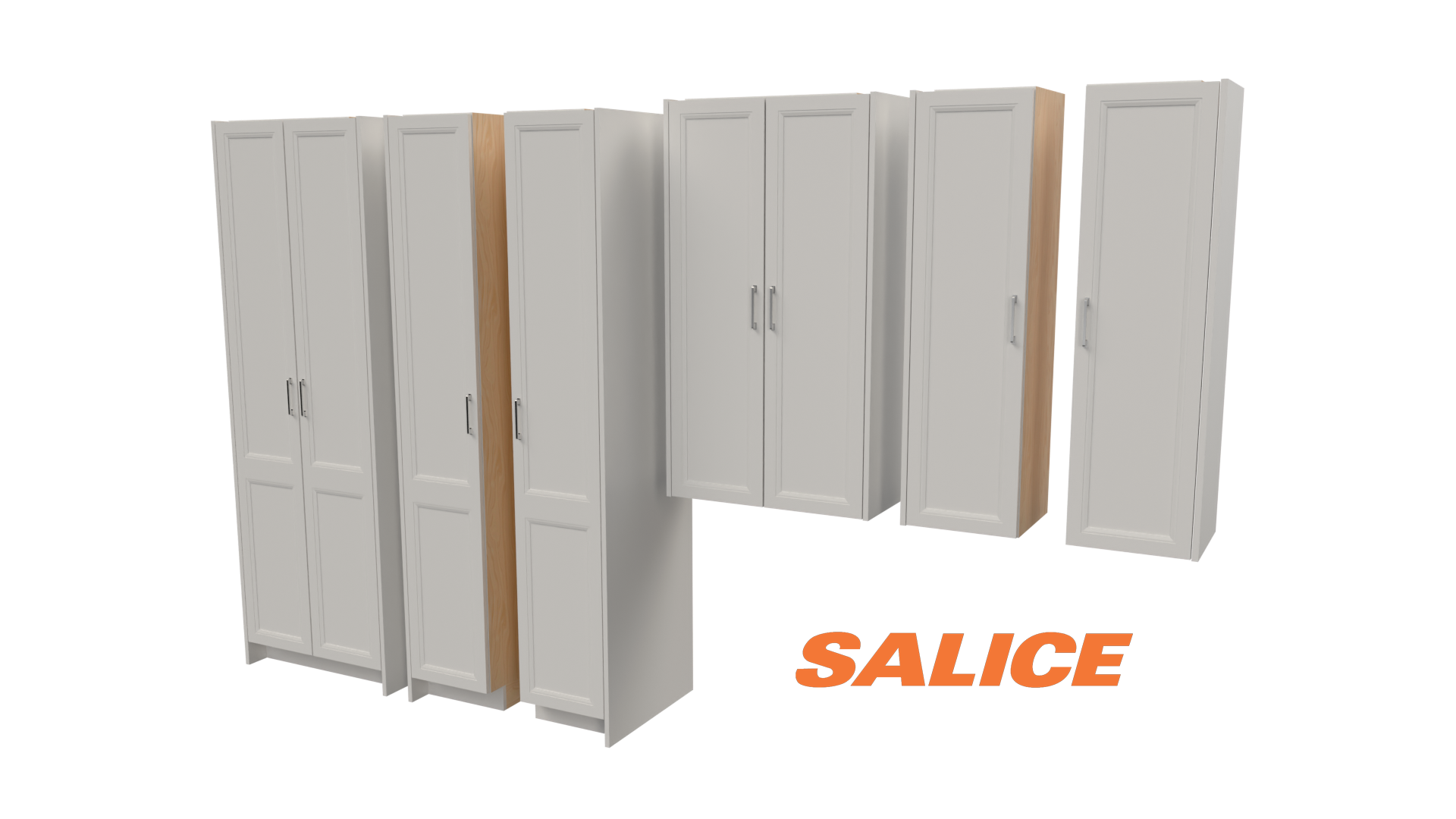

Salice Exedra | Pocket Door System
Simplify your pocket door projects with the Salice Exedra Pocket Door System, fully integrated for Mozaik Software. This model streamlines the design, CNC machining, and installation process, giving you everything needed for a smooth workflow.
After designing in Mozaik, record the required measurements and send them to your Salice distributor. You’ll receive a PDF quote with complete dimensions. Enter these into the user parameters list in Mozaik, and the model will automatically generate and position all necessary operations.
A step-by-step guide with diagrams is included to ensure simple, error-free setup.
Upgrade your pocket door workflow with the Salice Exedra Pocket Door System; precision and simplicity made easy.
Included Parameters
All necessary Min/Max door sizes built into products.
Side Panel Drilling
Hole Locations 1-5 from Salice
Door Drilling
Hole Locations 1 & 2 from Salice
Hinge Mounting Diameter
Number of Hinges (2, 3, 4, 5)
Aluminum Covers (Optional)
Cover Bracket Drilling Locations 1 & 2
Includes all necessary reveal construction overrides
Required Tooling
• 3/8 Compression
• 1/8" Downshear (If using aluminum covers)
• 5mm Drill
• 6mm Drill
• 8mm Drill
