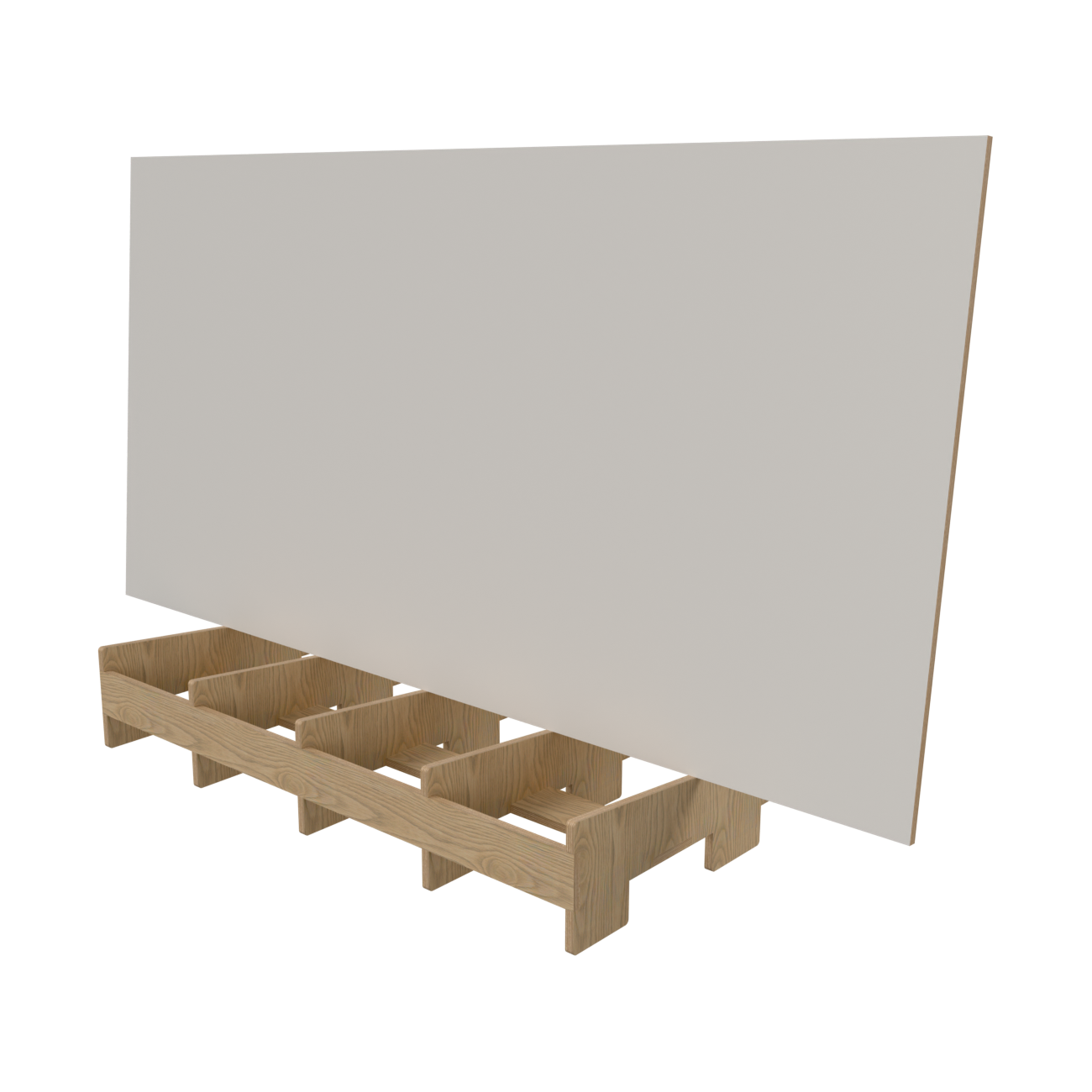

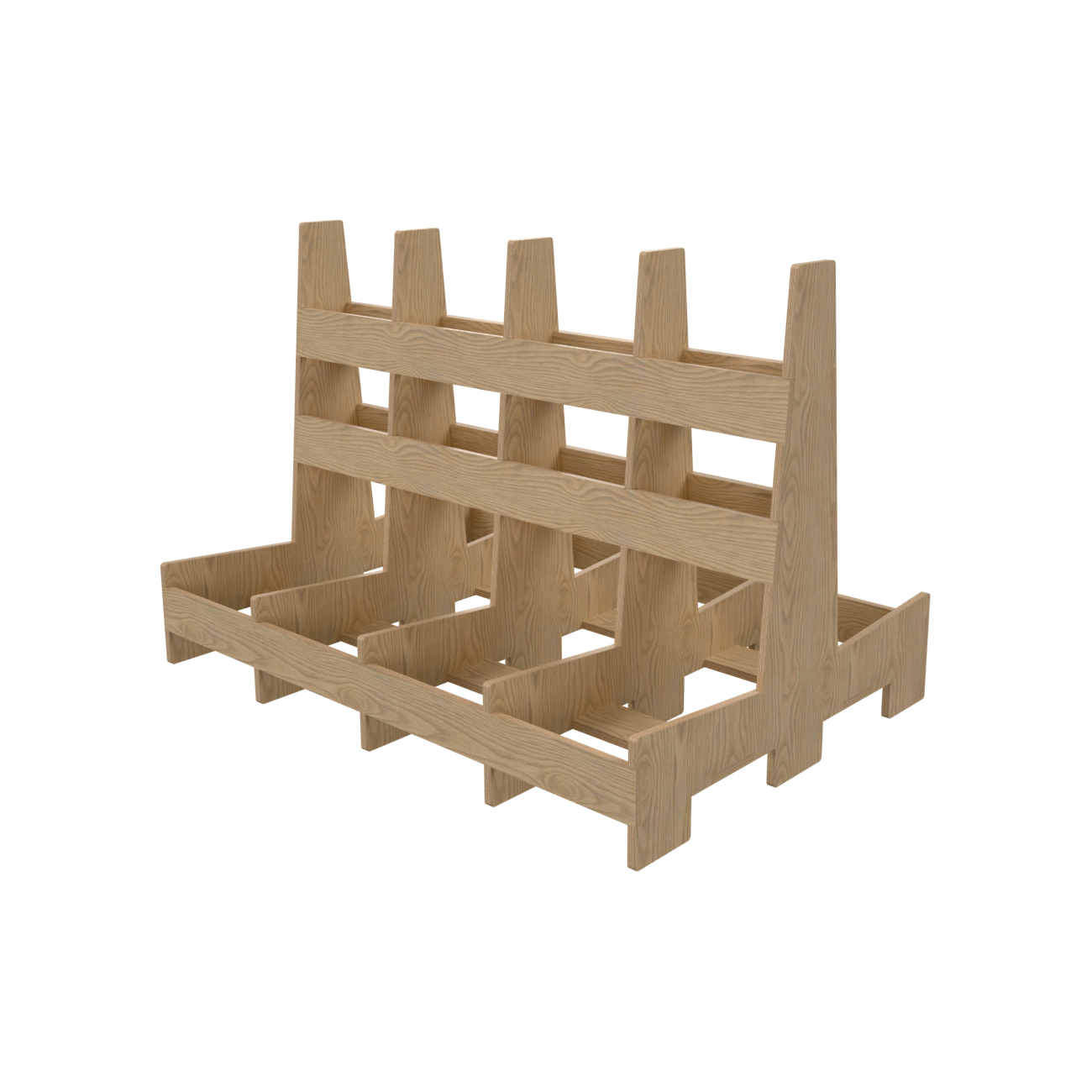

Sheet Racking
Streamline your CNC production with this fully parametric .MOZ file designed for Mozaik Software. This digital file allows you to quickly generate custom plywood sheet racking, perfectly tailored to your shop's storage needs.
Key Features:
Parametric Design – Adjust critical parameters such as slant angle, part size, and overall dimensions to fit your space and workflow.
Optimized for Plywood Storage – Ideal for organizing and accessing sheet goods with a space-saving, angled racking design.
Customizable & Scalable – Adapt the design to different sheet sizes or storage configurations without redrawing.
Perfect for cabinet shops, woodworkers, and fabricators looking to maximize storage efficiency and CNC precision. Download and start cutting today!
Included Parameters
Fork Access Dimensions
• Fork Height
• Fork Width
• Fork Spacing (Centerline of rack)
Shape
• Sheet Lean Angle
• Height of Base to Floor
• Width of Top of Rack
• Width of Spanners
• Edge Radius of Parts
Required Tooling
• 3/8 Compression
• 5mm Drill
