Sink Base with Cutouts
Make plumbing tie-ins painless. This parametric sink base uses a CNC-cut access opening with a matching flanged panel, so you can set the cabinet first—then drill precise holes for drains and supplies coming from the wall or floor. No more guessing or pre-boring before install and certainly no fighting with setting a cabinet around plumbing.

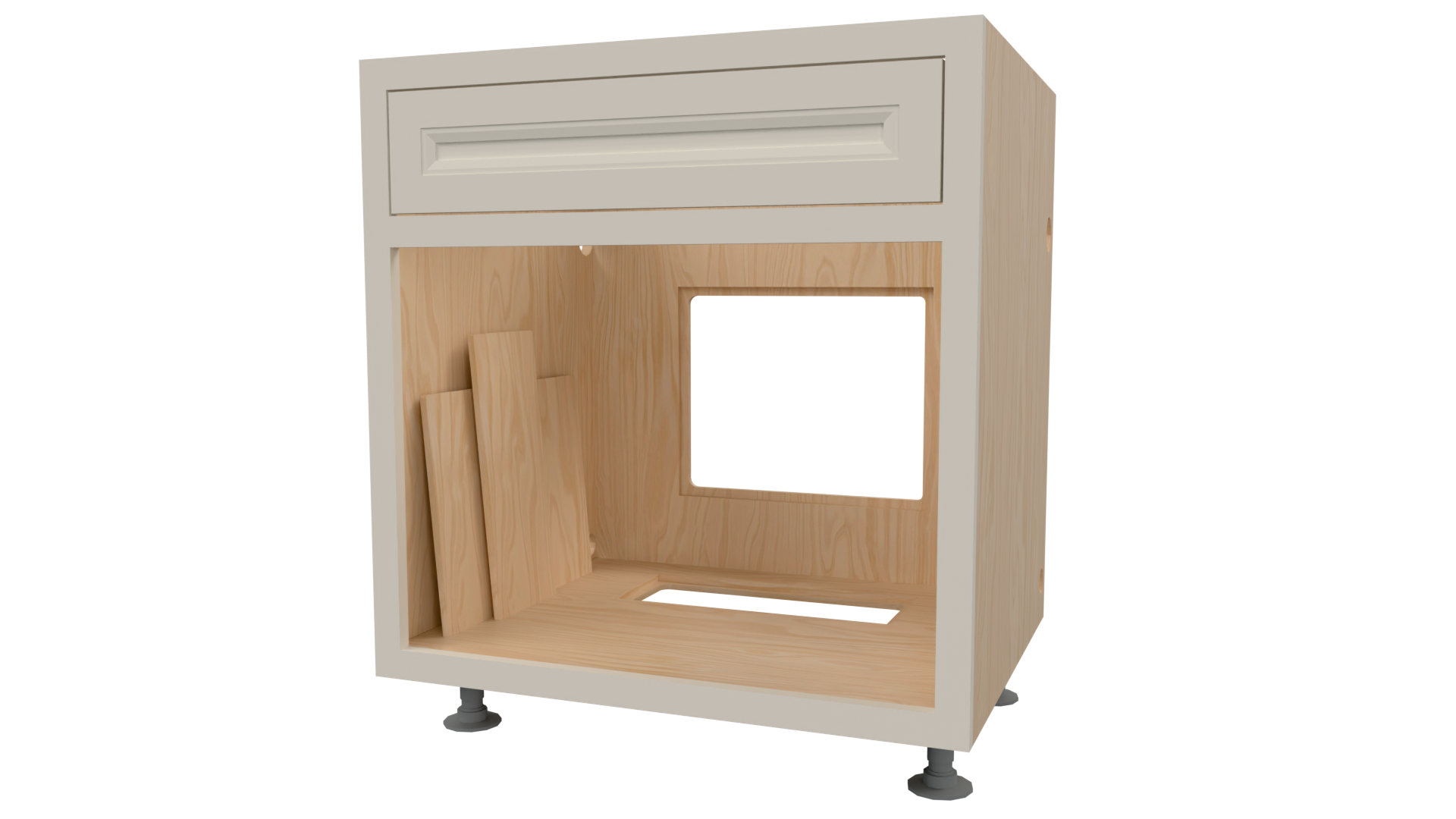

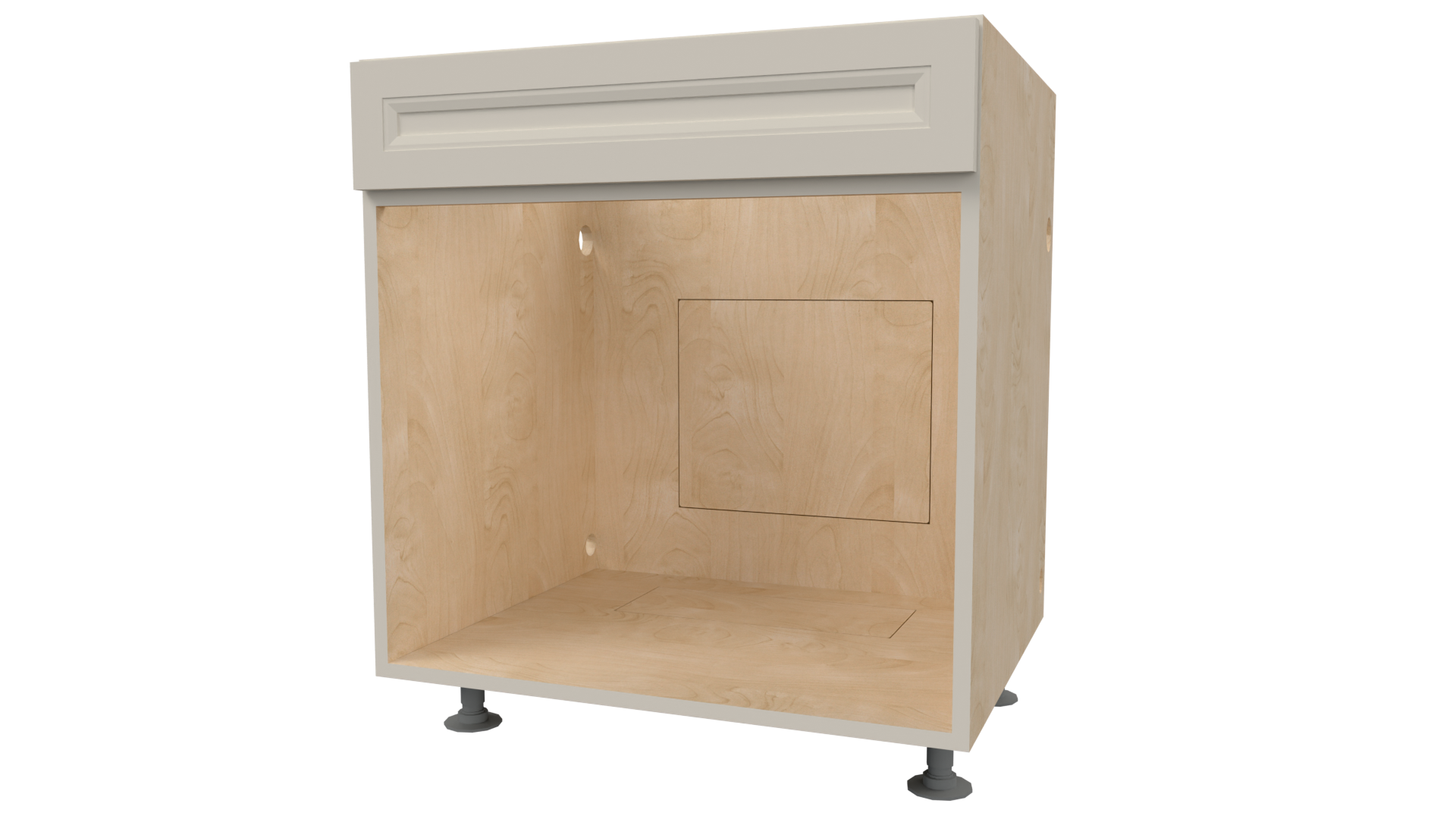

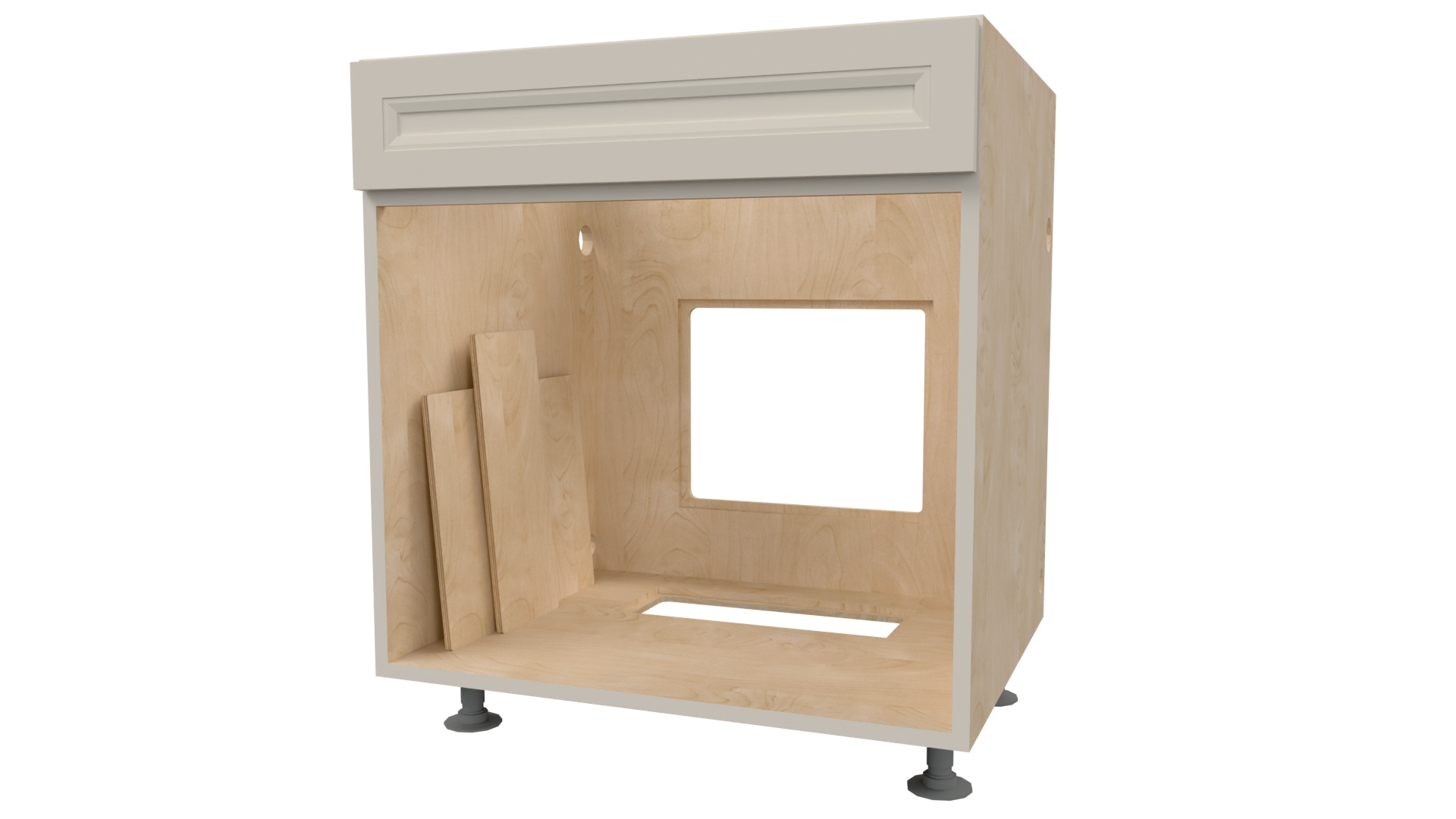

- How it works: Your CNC cuts a large access hole in the back or bottom and a flanged panel that reattaches with glue, nails, or screws.
- Flexible routing: Optional cutouts for supply and/or drain lines on either end—toggle on/off and size from the Parameters tab.
- Compatible: Works with standard methods, frameless or face-frame construction.
Faster installs, cleaner interiors, fewer mistakes.
Included Parameters
Access Panels
• Cutout Tool Size
• Panel Cutouts to Include (None, Back, Bottom, Both)
• Back Panel - Width
• Back Panel - Height
• Back Panel - Distance from Bottom
• Move Back Cutout Left off Center
• Move Back Cutout Right off Center
• Bottom Panel - Width
• Bottom Panel - Height
• Bottom Panel - Distance from Back
• Move Bottom Cutout Left off Center
• Move Bottom Cutout Right off Center
• Reveal Between Panel and Panel Cutout
• Panel Flange Size
Appliance Plumbing
• Drain and Supply Locations: (None, Left End, Right End, Both)
• Drain Line Hole Diameter
• Supply Line Hole Diameter
• Drain Line Distance from Top
• Supply Line Distance from Top
Required Tooling
• 3/8 Compression
• Any other tools needed for your construction method
